Hyper Brake Rotor
- Free shipping over 160 Euro for delivery within Italy

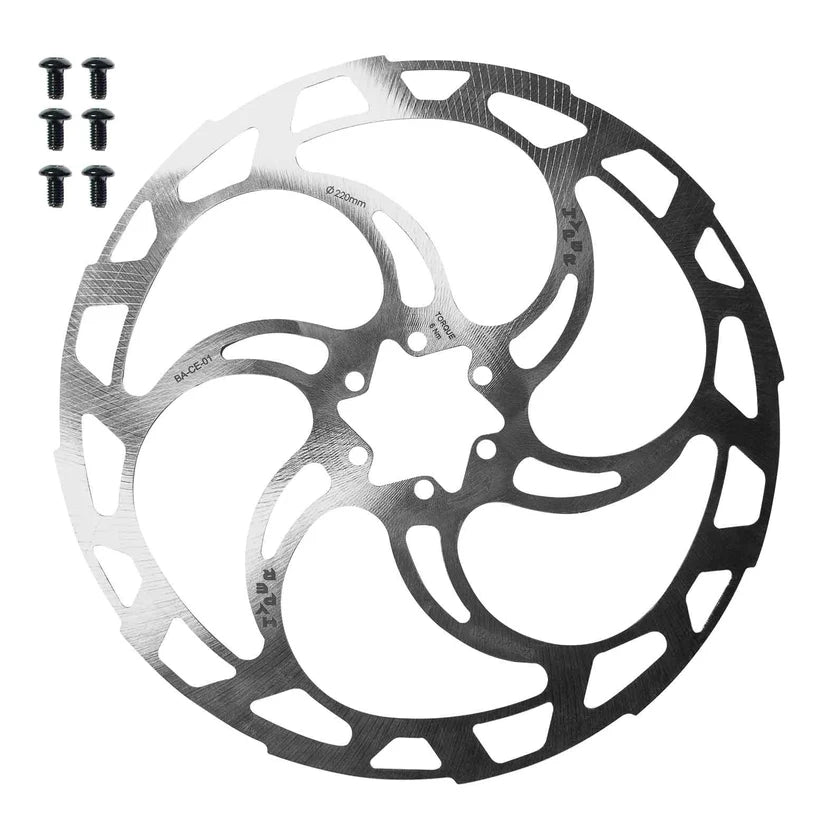

Hyper Disc 220 Hydraulic Brake Rotor
The precision-engineered Hyper Disc 220 delivers superior stopping power for demanding trail, all-mountain and downhill riding conditions. Made from premium stainless steel for enhanced durability and performance.
Designed for hydraulic 4-piston disc brake systems, the Hyper brake rotor offers exceptional heat dissipation and consistent braking performance even in wet conditions, making it the perfect choice for aggressive riders.
With over thirty years of experience in the world of two-wheel racing, we have developed cutting-edge solutions for our braking systems.
The HYPER VENTIVENTI system is set to revolutionize the world of BRAKE SOLUTION, taking brake performance to an entirely new level.
HYPER VENTIVENTI: envisioned, engineered, and crafted in Italy
ATTENTION: Requires the compatible brake pads by Hyper Performance, please select your desired type of pad HERE.
Features
- AISI420 stainless steel with maximum carbon content for exceptional strength
- Laser-tempered treatment for enhanced durability

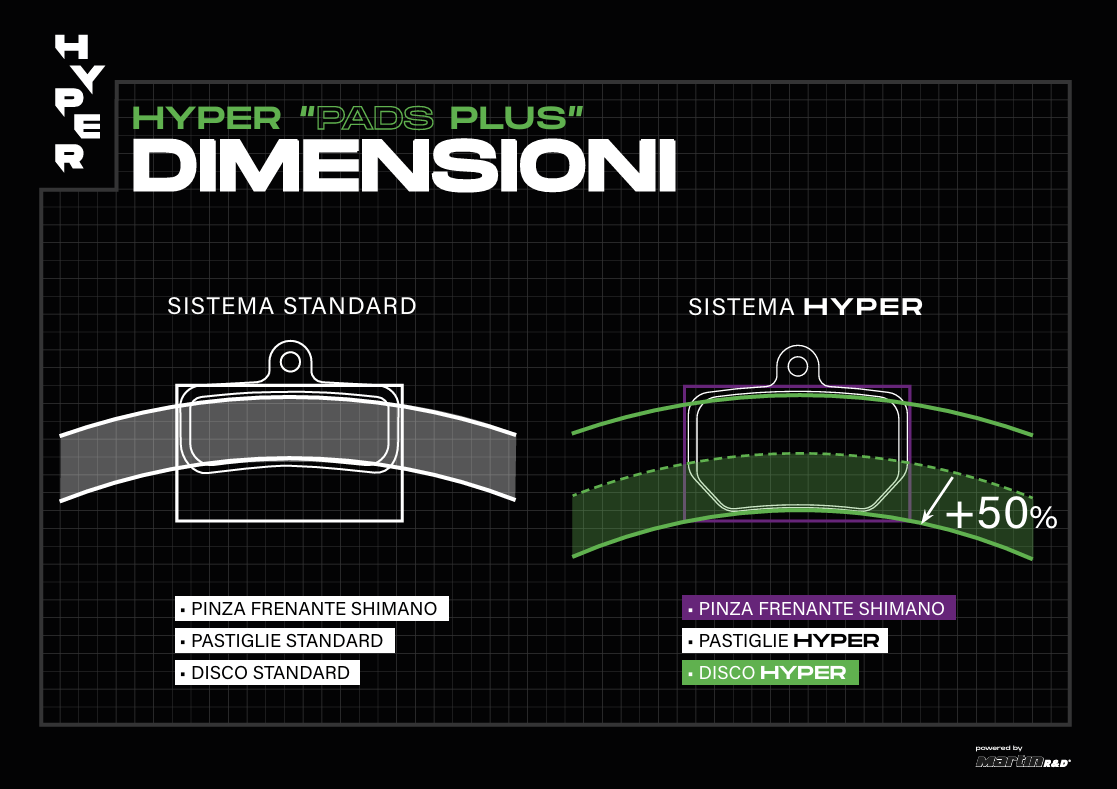

- Expanded 20mm brake pad track, increasing contact area by 50% compared to standard
- Cataphoresis coating for extreme corrosion resistance and protection from external agents
- Orbital grinding finish ensures perfect flatness and attractive design
- Large 220mm or 203mm diameter for enhanced stopping power and heat dissipation
- Optimized 2.3mm thickness for ideal balance of strength and weight
- Compatible with leading brake systems including Shimano and SRAM
- Precision-engineered mounting system with included fixing screws
- Lightweight design at only 285g
Product Specifications
Usage & Design
- Installation: hydraulic 4-piston disc brake system
- Rotor Diameter: 220mm, 203mm
- Thickness: 2,3 mm
- Weight: 285 gr (220mm), 230 gr (203mm)
- Material: Stainless steel AISI420
Compatibility
- Shimano: DEORE, SLX, XT
- SRAM: GUIDE, CODE, MOTIVE
- Formula: CURA 4
Construction
- Material: AISI420 stainless steel with maximum carbon content
- Surface Treatment: Laser-tempered
- Finishing: Orbital grinding for perfect flatness
- Coating: Cataphoresis for extreme corrosion resistance
- Brake Track: 20mm wide (50% larger than standard)
Mounting & Compatibility
- Mounting System: 6-bolt standard
- Fixing Screws: 6 x 02-DS-001-001 included
- Brake Type: Hydraulic 4-piston systems
Package Contents
- 1 x HYPER DISC 220 or 203
- 6 x 02-DS-001-001 HYPER fixing screws
