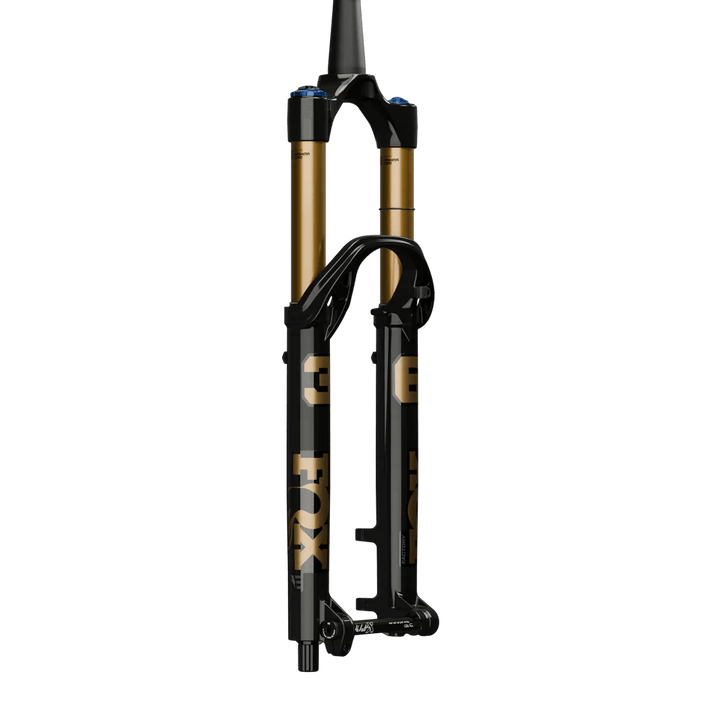

2026 FOX 36 FACTORY E-MTB GRIP X2
- Free shipping over 160 Euro for delivery within Italy

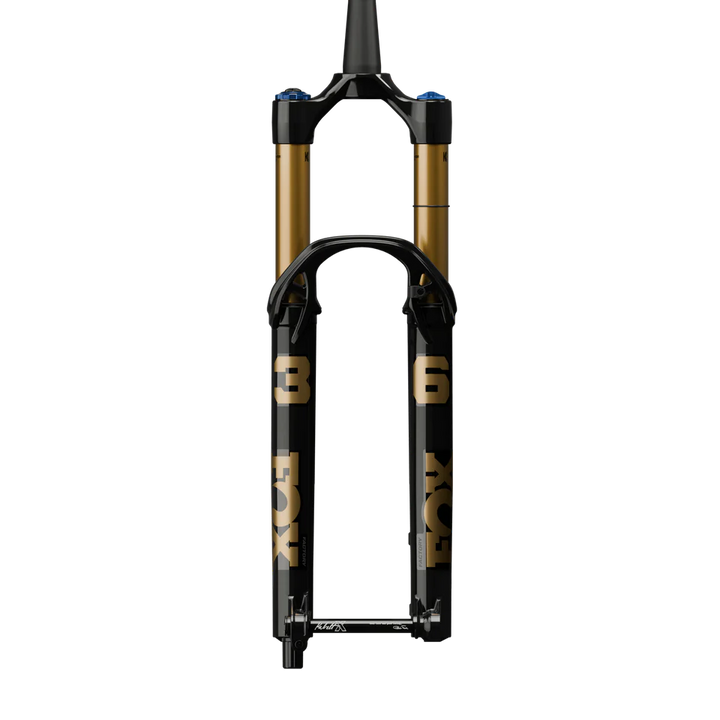

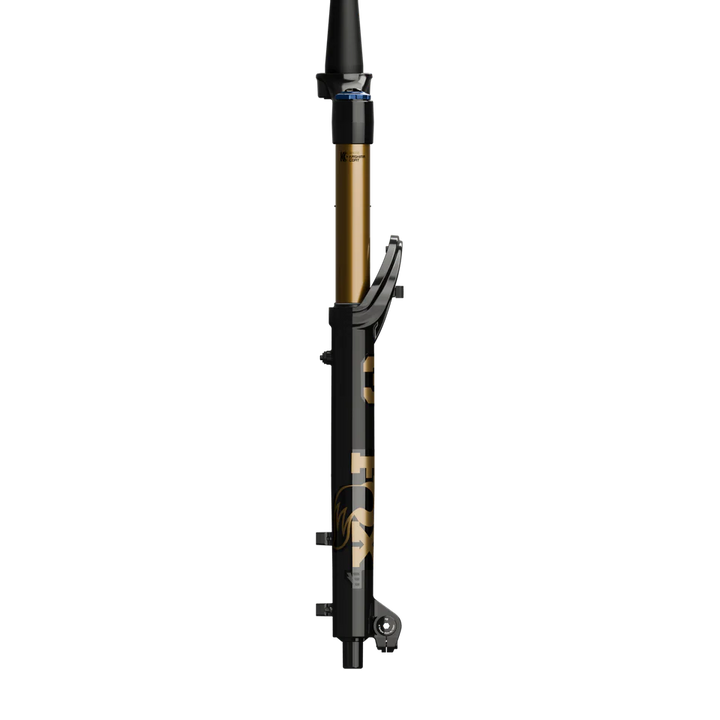

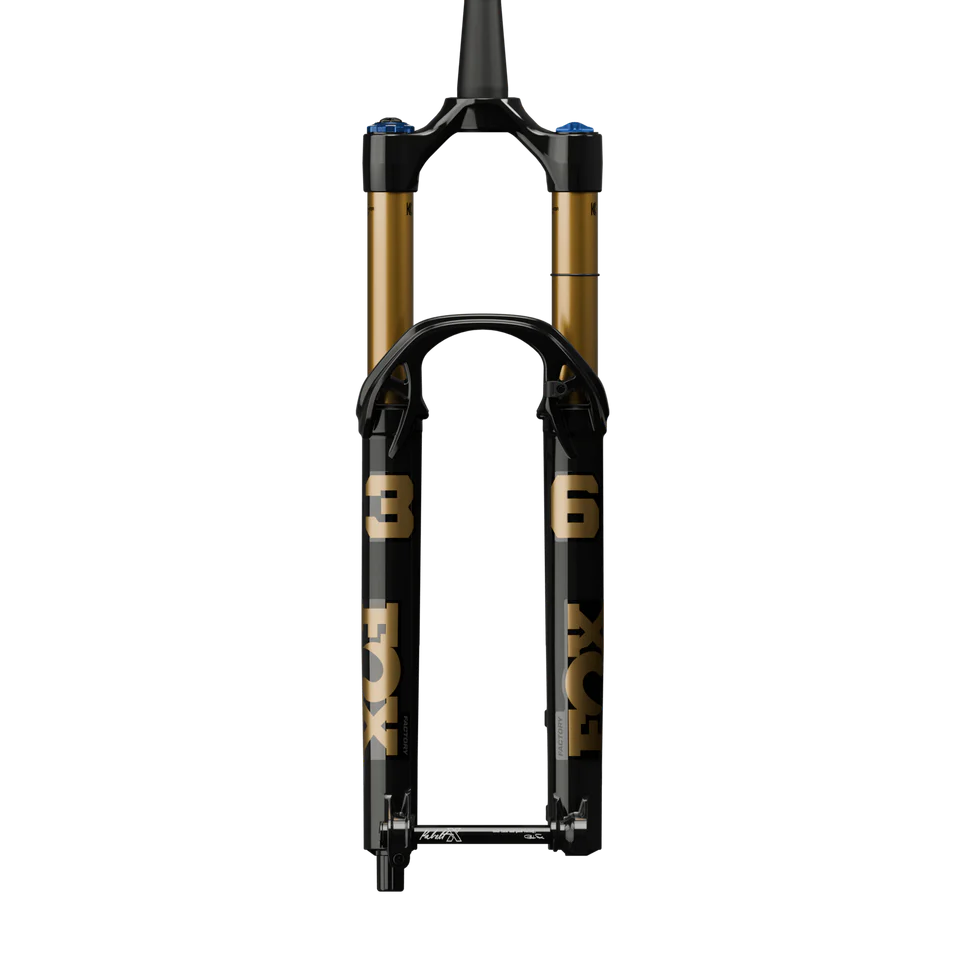

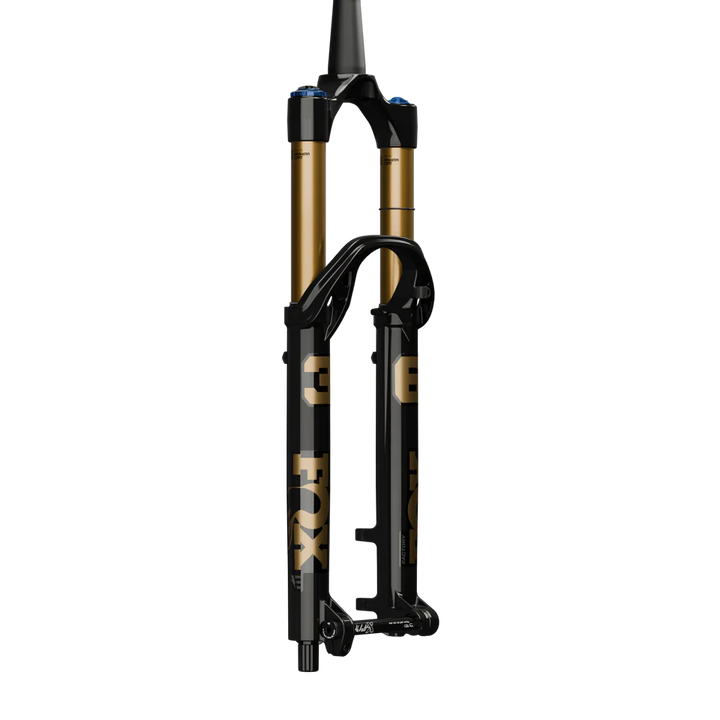

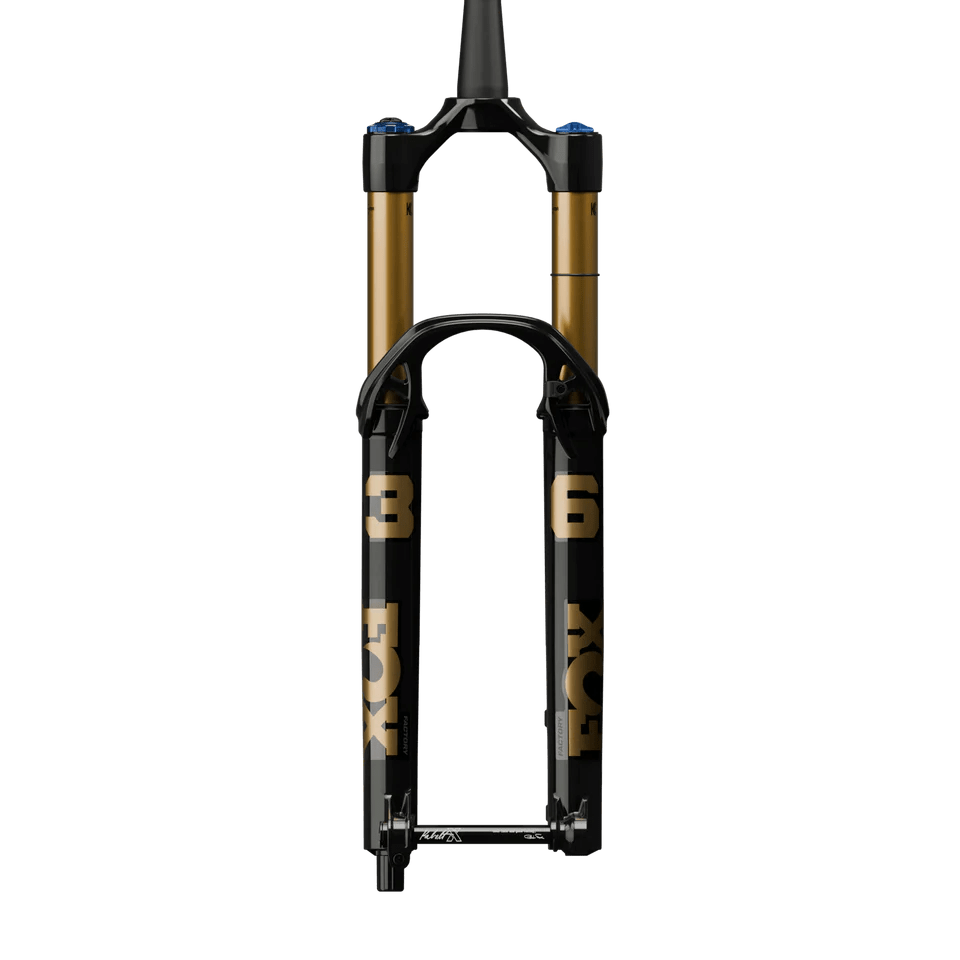

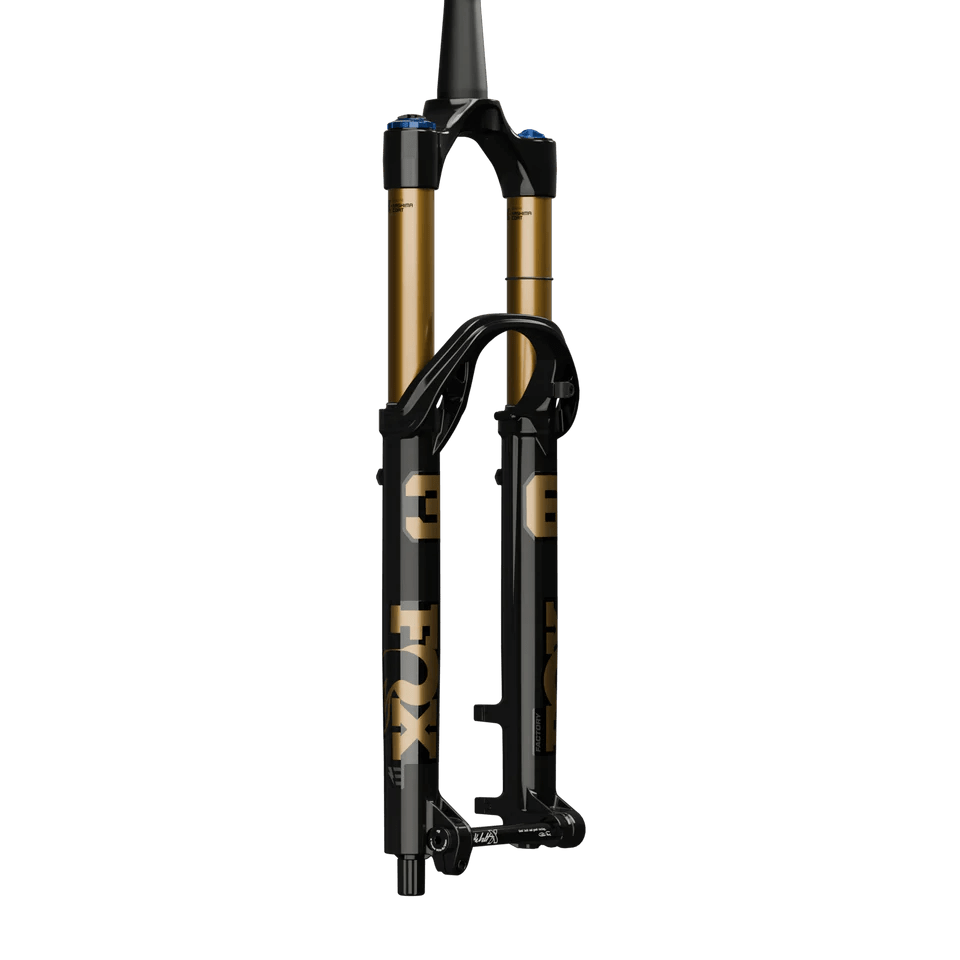

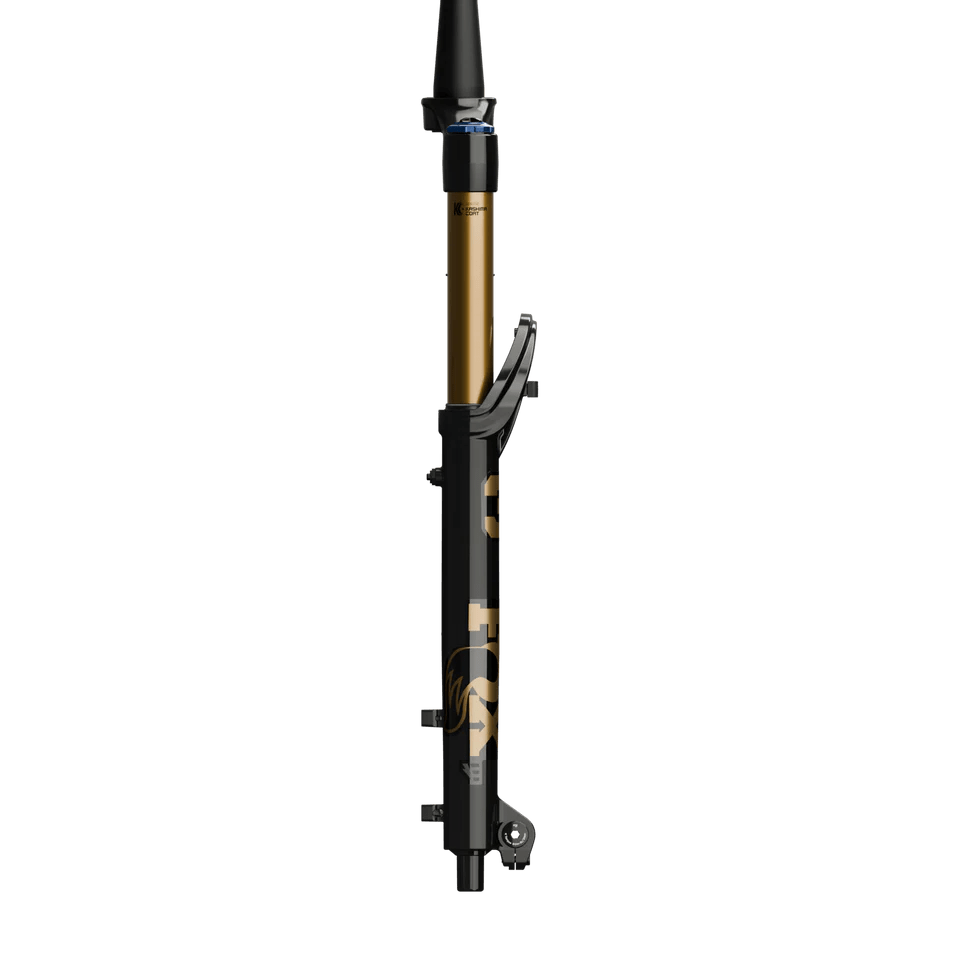

FOX 36 FACTORY E-Optimized GRIP X2
The latest evolution of the revered 36 brings big fork energy to All-Mountain riding. Greater steering stiffness and smoother travel give the Fox 36 an Enduro feel, without the weight. Available in both Trail-focused GRIP X and Gravity-focused GRIP X2 damper options.
The eMTB version features reinforced chassis to handle the increased loads of eMTB and World Cup EDR-E racing, and offers longer durability due to added material to strengthen critical areas.
GRIP X2 is the most tuneable, supportive and smoothest descent-focused damper ever created by FOX. Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground, cornering with increased traction. It gives you the confidence to push the limits of downhill and enduro racing, all while reducing overall rider fatigue. GRIP X2 is the winning difference.
Features
- FLOAT Glidecore air spring
- Gravity-oriented GRIP-X2 damping cartridge with high-speed and low-speed compression damping
- Factory Series models feature genuine Kashima Coat
- Completely redesigned arch for 20% higher torsional stiffness
- Air channels in the lower leg
- Pressure Bleeders
Product Specifications
Usage & Design
- Use: All Mountain, Trail
- Wheel size: 29"
- Travel: 160 mm mnm
- Spring: Air
- Damping: Grip X2
- Color: Shiny black
Adjustments
- High-speed compression: 8 clicks
- Low-speed compression: 18 clicks
- High-speed rebound: 8 clicks
- Low-speed rebound: 16 clicks
Construction
- Steerer: Tapered 1.5" to 1 1/8", Aluminium
- Upper Tubes: 36 mm, Aluminium (Kashima Coat)
- Crown: Aluminium
- Lowers: Magnesium
Mounting & Compatibility
- Disc brake mount: Post Mount (PM8 - Direct Mount 200 mm)
- Maximum Rotor Size: 230 mm
- Drop out: 15x110 mm Kabolt X
- Offset: 44 mm
Package Contents
- 1 x Fox Racing 36 Float 29" Factory Grip X2
- 1 x Fox Racing Boost Thru Axle Kabolt X
- Brake Hose Clip
- 3 x Volume Spacers
- 1 x Star nut
Useful Links
Technologies
GRIP X2 - To create the ultimate descent-focused damper, we sought the level of tunability seen in motocross and supercross racing suspension. Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground. Corner with increased traction and the confidence to push the limits of downhill and enduro racing, all while reducing rider fatigue.
Kashima Coat - Buttery-smooth, Genuine Kashima Coat's distinctive gold color is backed by its high performance attributes - properties that provide an exceptionally smooth feel and extreme durability.
FLOAT Glide Airspring - The seamlessly compliant FLOAT Glidecore air spring reduces friction by moving with the fork under dynamic load. Large cross-section O-rings dampen and control this motion while also reducing breakaway friction of the air spring. The result? Smoother suspension action.
Air Volume Spacers - The progressiveness of the FLOAT air spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.
