SKU: 960-01-016
Price
Save €270
/
  • Free shipping over 160 Euro for delivery within Italy

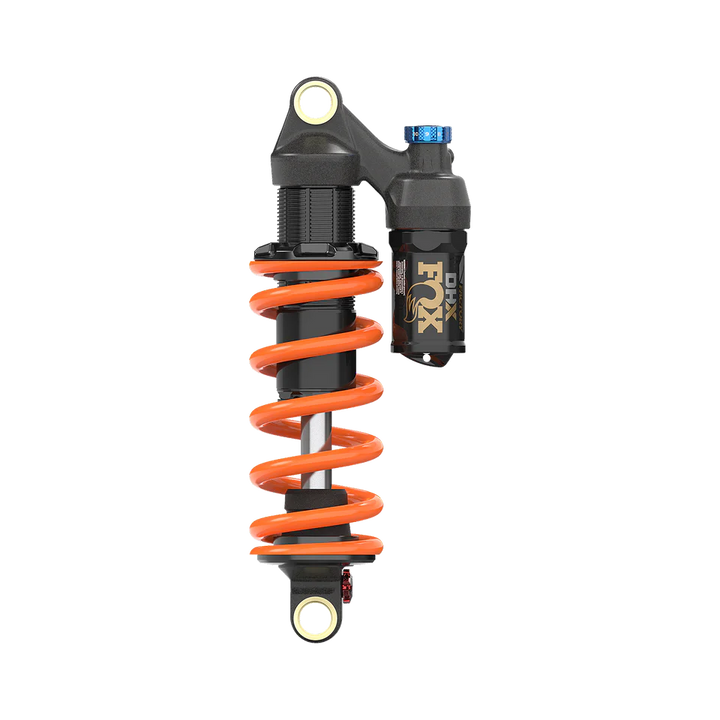

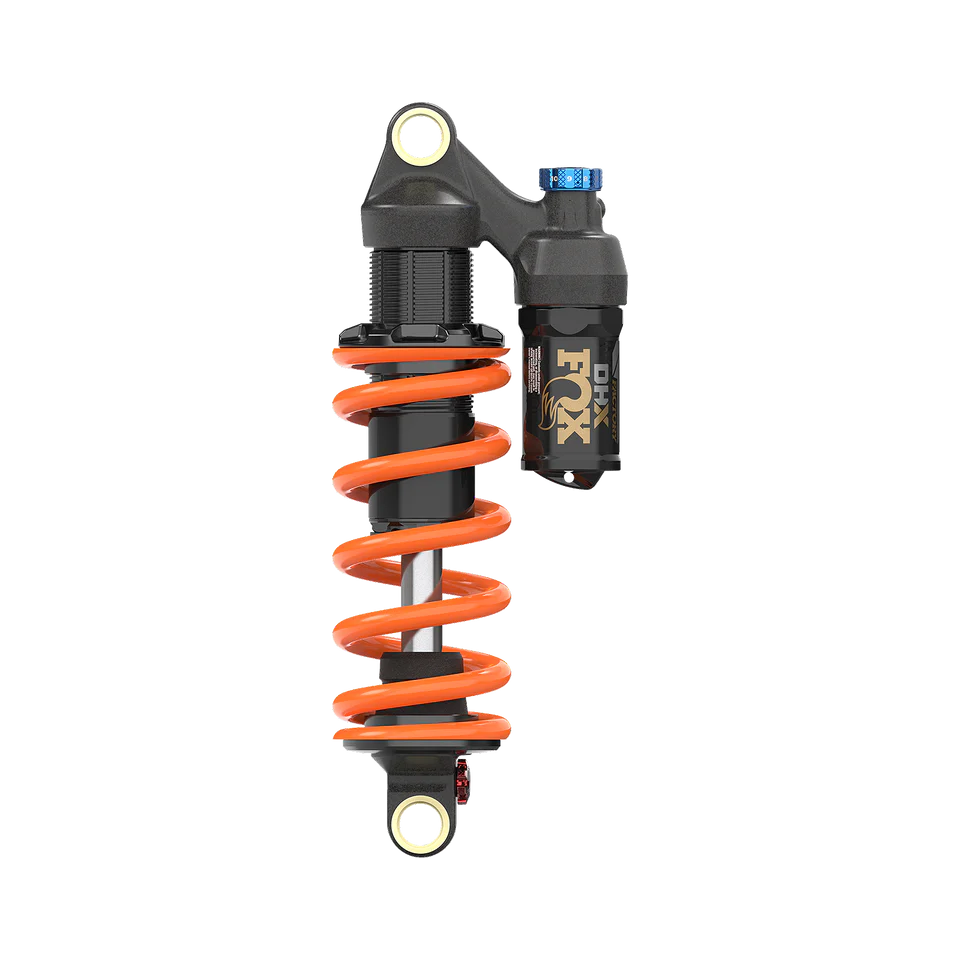

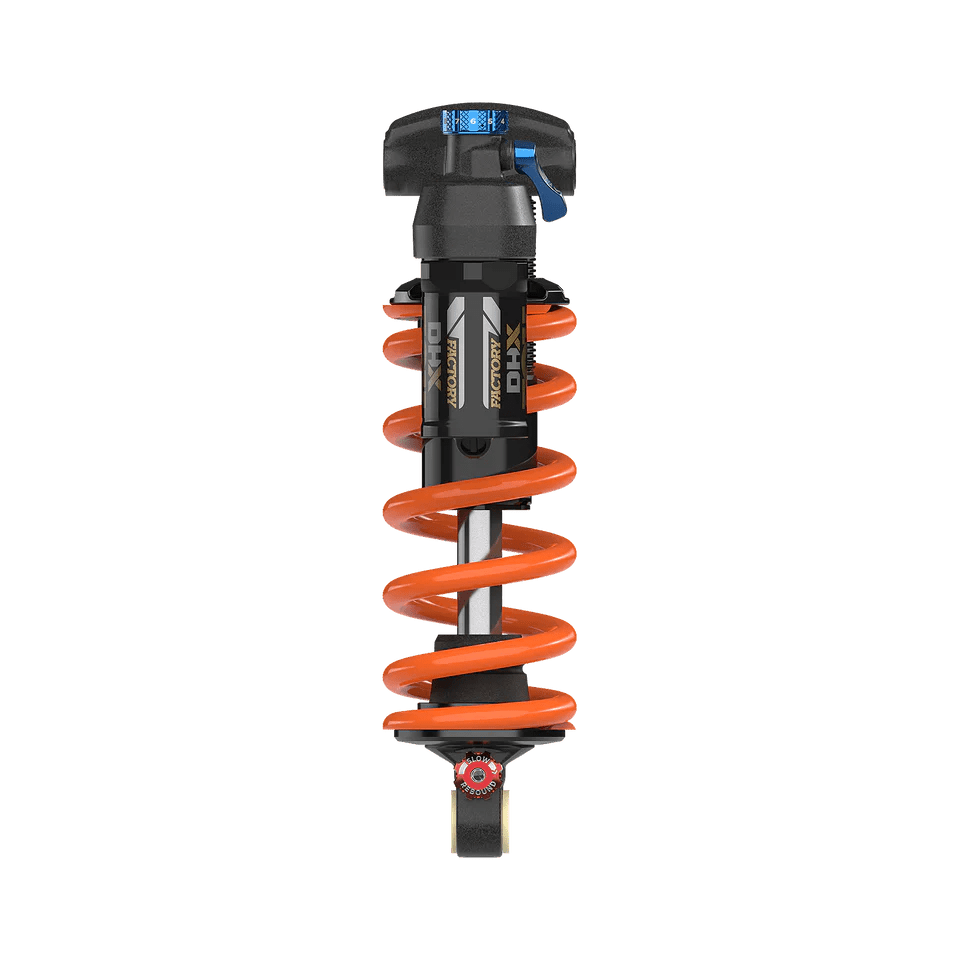

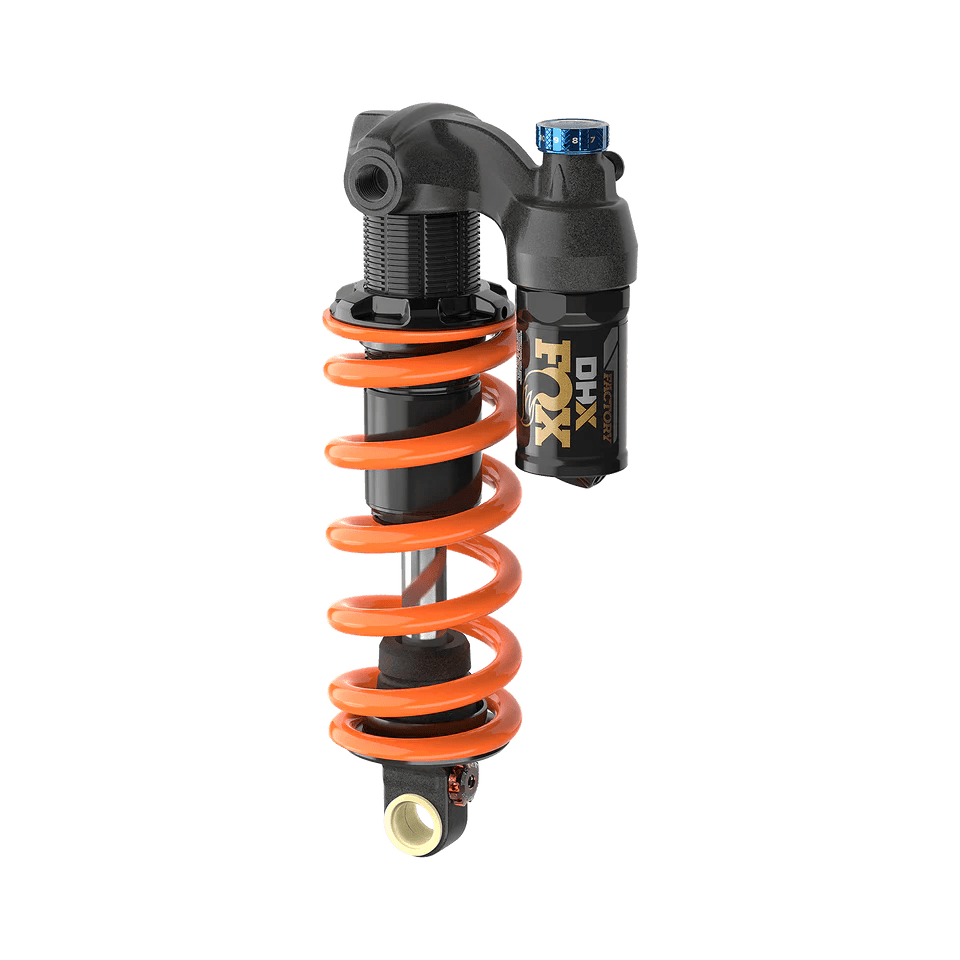

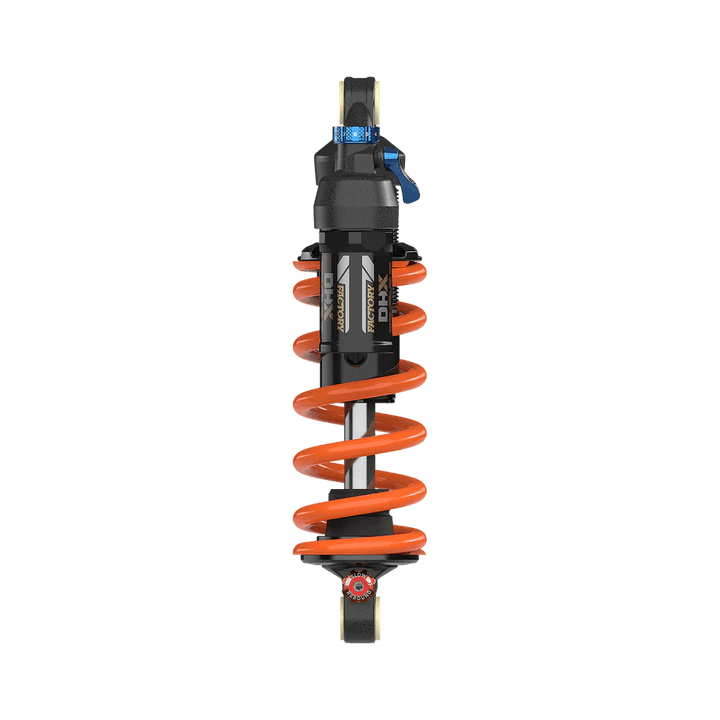

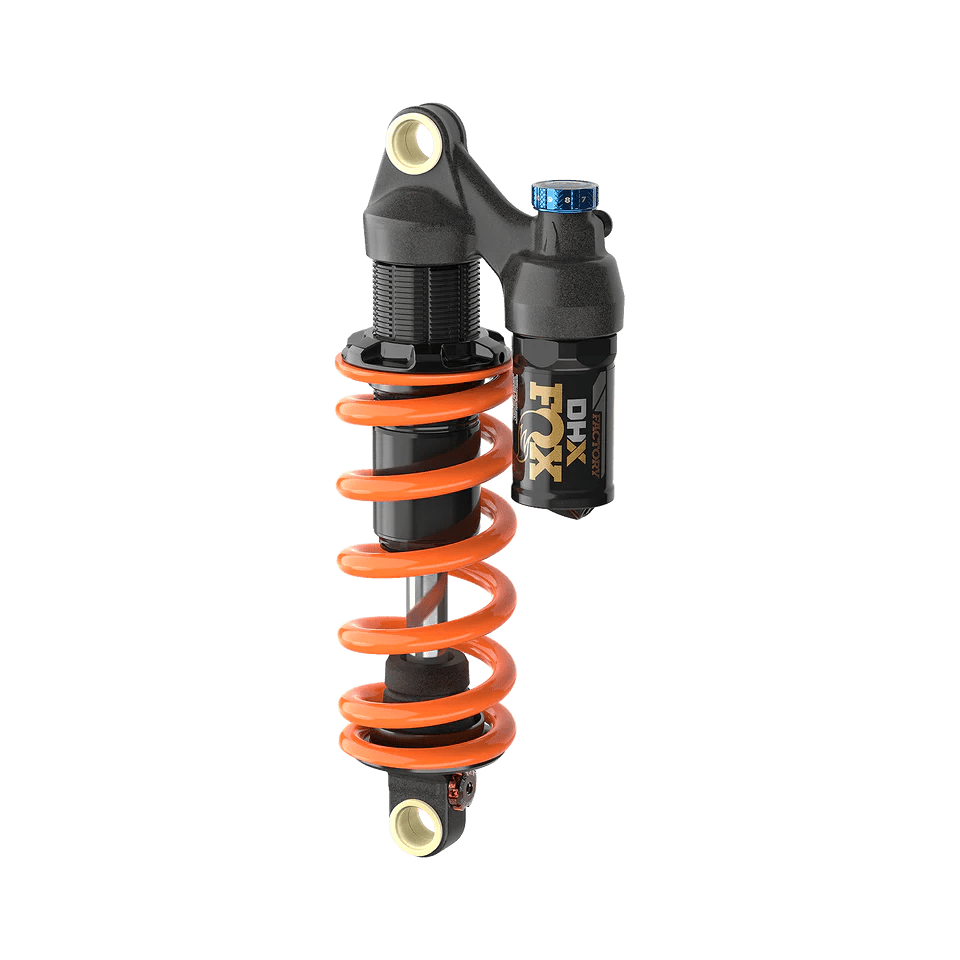

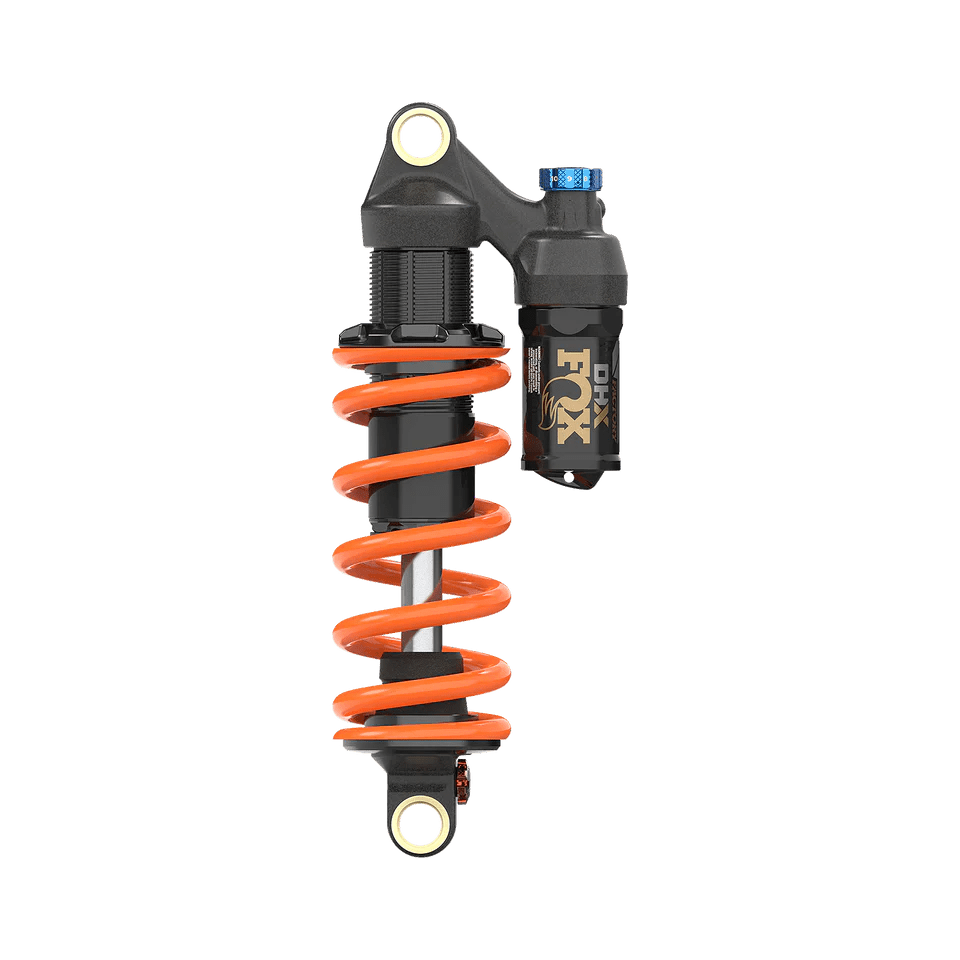

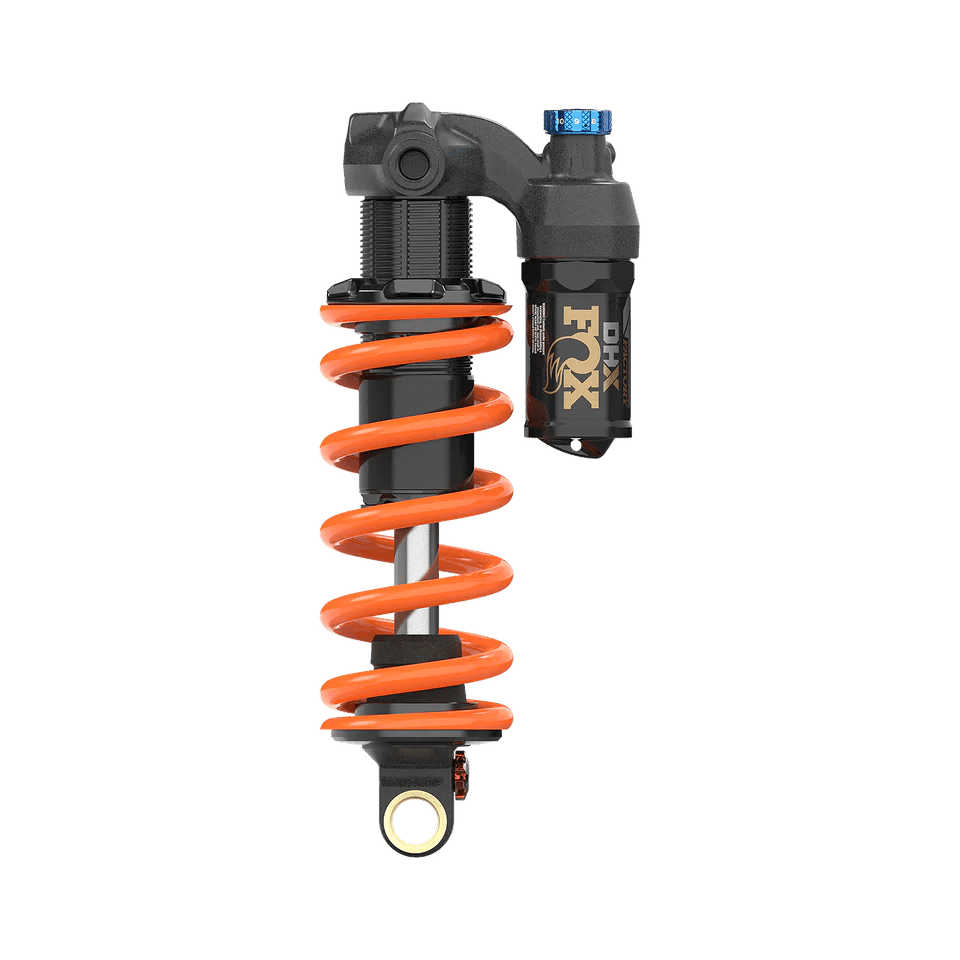

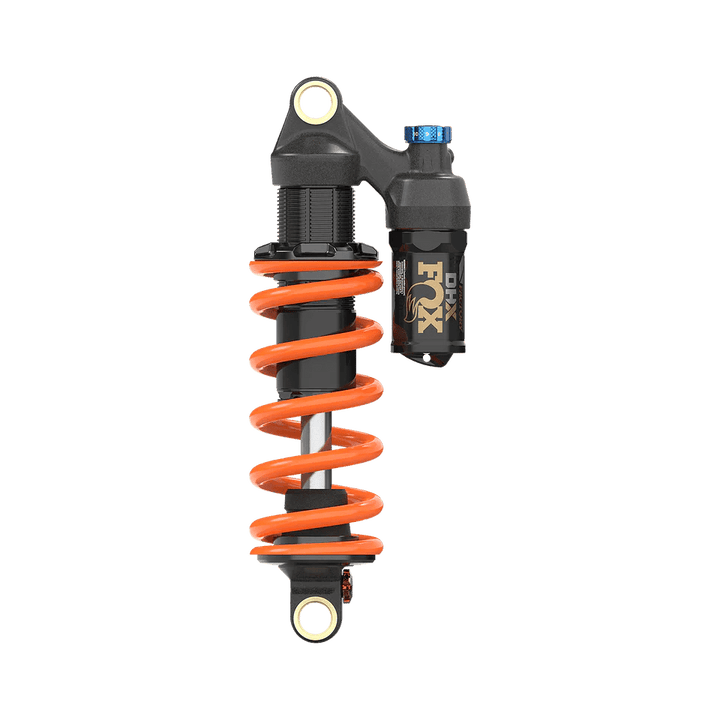

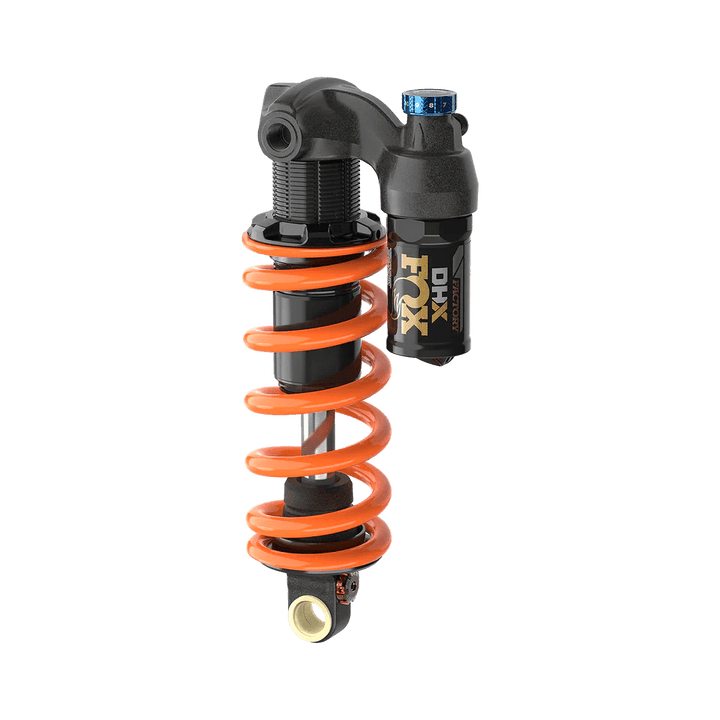

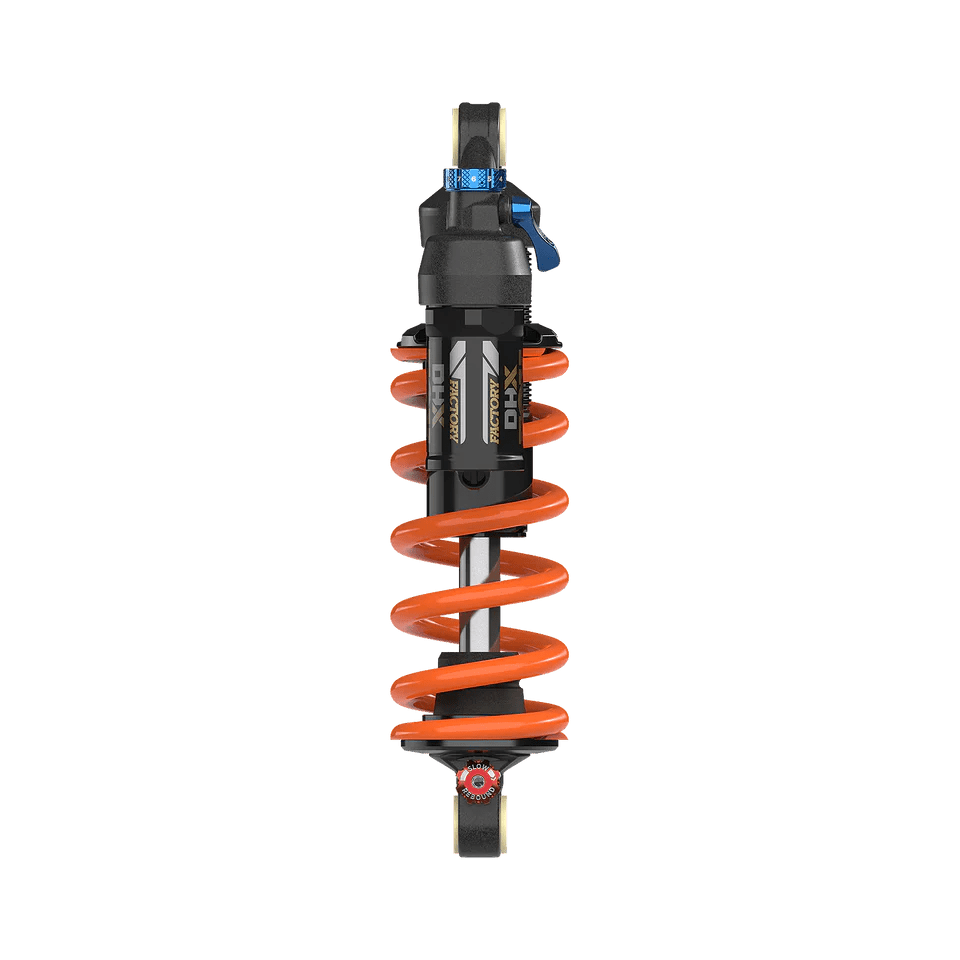

Fox Racing Shox DHX Factory

The answer for riders seeking the ultimate in plush suspension, DHX brings coil-sprung, ground-hugging, trail-smoothing performance in a wide range of configurations to All-Mountain riding with intuitive adjustments.

The piggyback reservoir increases oil volume and adds a secondary compression circuit for enhanced bump sensitivity, tire grip and fade-free descent performance. Reservoir length is optimized for each shock size for less weight and improved frame fitment.

A 12-click Low Speed Compression adjuster dials in the perfect level of support while an optional Firm Mode switch allows efficient power transfer when climbing. A wide range of rebound adjustment means DHX can adapt to various terrain and rider preference.

Fox DHX Factory Features

  • Tool-free Low Speed Compression Adjuster
  • Independent 2-position open/firm lever
  • Optimized reservoir lengths per shock size
  • Hydraulic Top Out Feature

Fox DHX Factory Product Specifications

Sizes

  • Metric: 190 x 45 / 210 x 50 / 210 x 52.5 / 210 x 55 / 230 x 57.5 / 230 x 60 / 230 x 62.5 / 230 x 65
  • Trunnion: 185 x 52.5 / 185 x 55 / 205 x 60 / 205 x 62.5

Adjustments

  • Independent 2 Position Open/Firm Lever
  • Low Speed Rebound: 16 Clicks
  • Low Speed Compression: 12 Clicks

Fox DHX Factory

Specs & Family Features

  • ALL-NEW chassis and damper
  • High-flow main piston
  • Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
  • Independent firm mode circuit – 2 position adjuster
  • Optimized reservoir lengths per shock size
  • Hydraulic top out feature
  • Reduced damper noise
  • MCU bottom out bumper
  • Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access)
  • Spring preload collar with detents and max / min number of clicks and direction arrow
  • Full diameter spring retainer with wire ring (like DHX2)
  • Spring scuff guard on body (like DHX2)

Package Contents

  • 1 x Fox Racing Float DHX Factory
  • Shock bushings and shock pump are not included!
